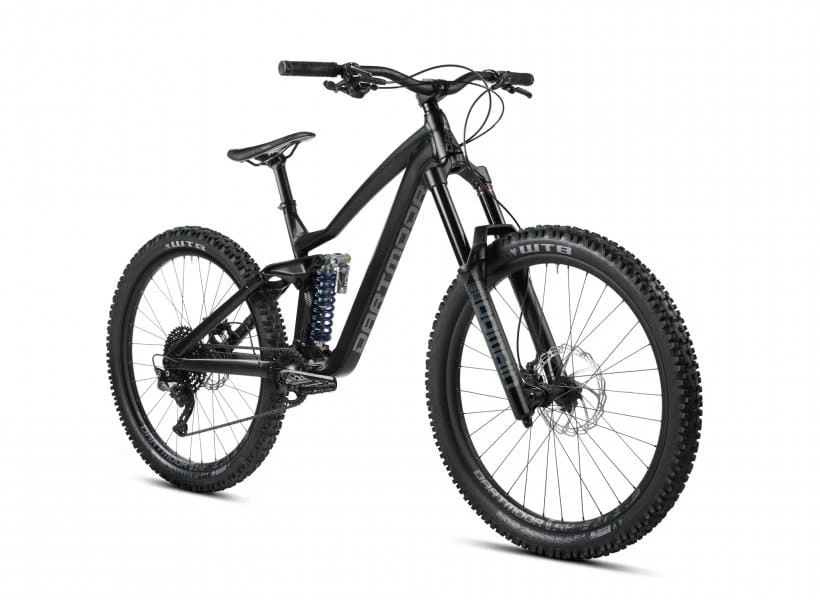

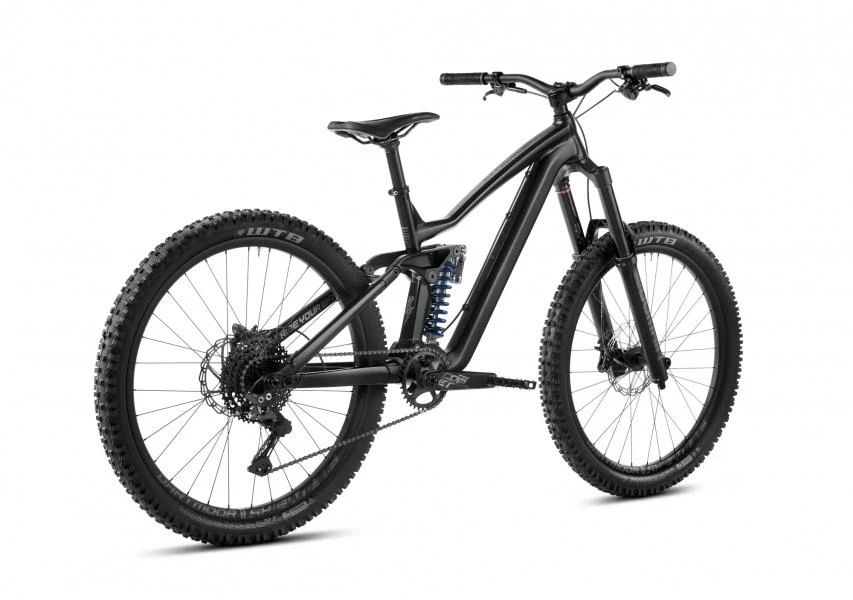

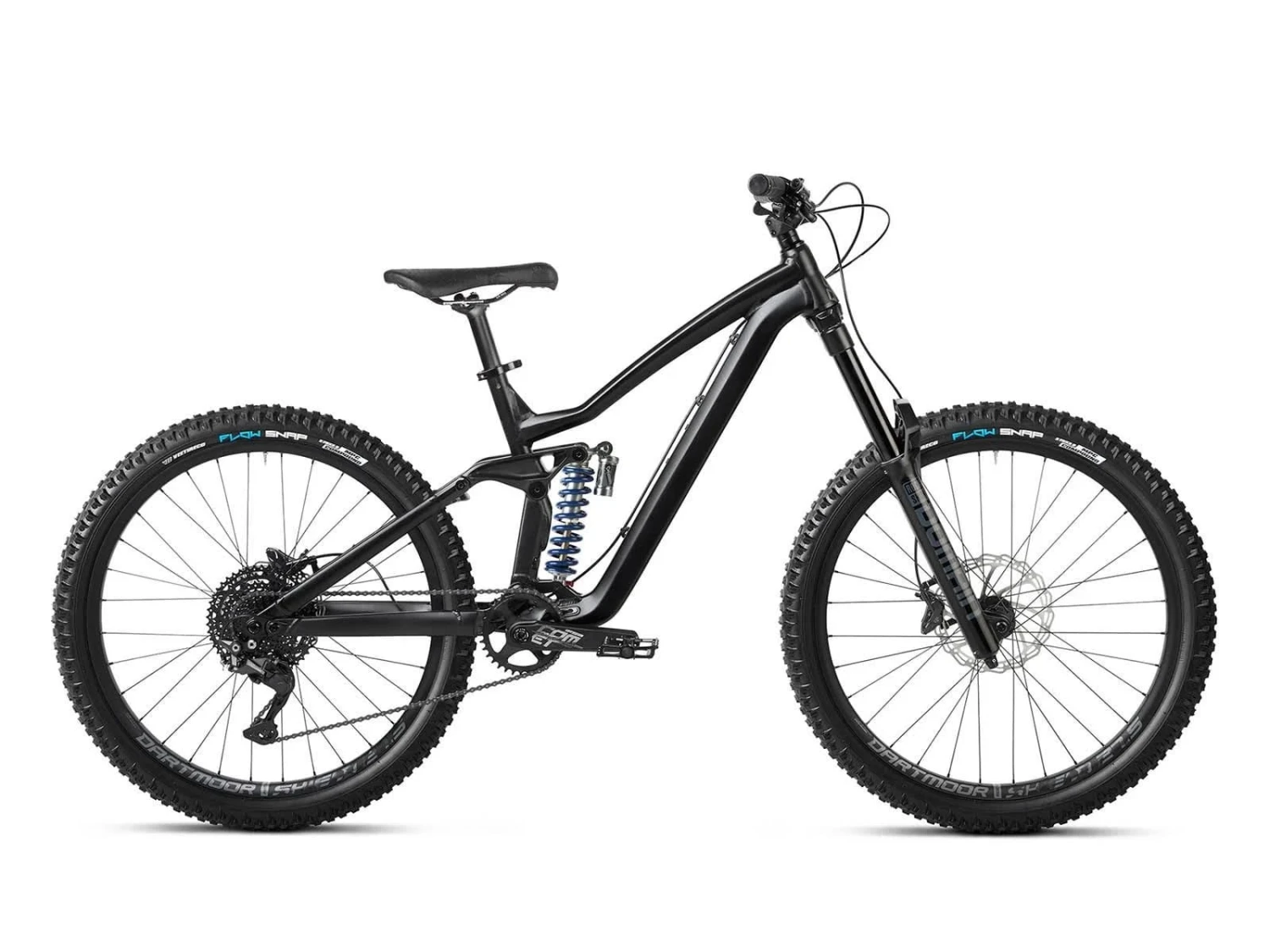

Dartmoor Trailbike Thunderbird FR Evo Alu 27,5“ Matt Black/Grey

DESCRIPTION
This bike can give you more fun in the bikeparks than you could ever imagine, won’t kill your budget, and let you save some cash for the bikepark lifts. With a 180mm travel Rock Shox Domain front suspension that offers 38mm chassis, and X-Fusion H3C HLR coil shock, you can focus only on riding, and let the rest just vanish.

WHEEL SIZE: 27.5″
FORK TRAVEL: 180MM
FRAME: AL 6061-T
WEIGHT: 17.20KG

MAIN FEATURES

• 180/180mm front/rear suspension travel

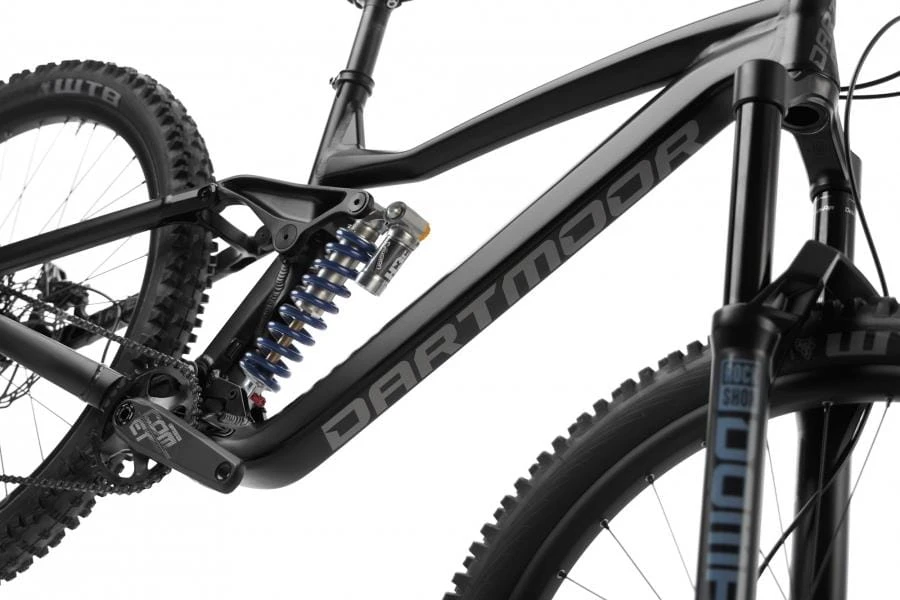

• Super solid Dartmoor Thunderbird aluminum frame with 180mm travel, Boost rear end, and SRAM UDH hanger
• 1.8″ tapered head tube with 69mm fork crown, 1.8″ tapered fork steerer, and 60mm bottom headset bearing to take safely huge drops and long gaps
• Rock Shox Domain fork with 38mm upper legs, Motion Control damper, and DebonAir spring
• New X-Fusion H3C HLR shock with 400 lbs coil rate
• FSA Comet Heavy Duty Alu forged crankset with 24mm Chromoly spindle and 34T direct mount narrow-wide chainring

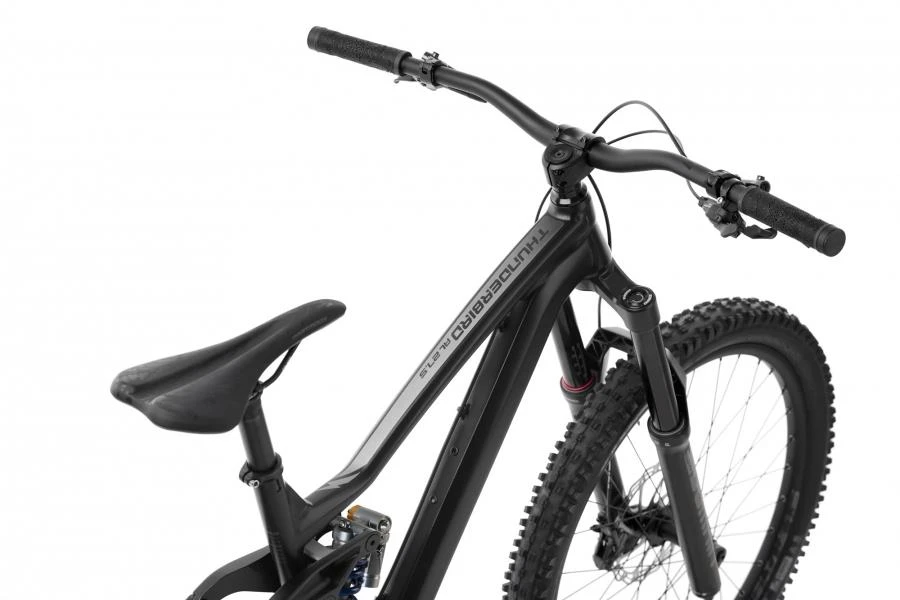

• 31.8mm cockpit with 785mm wide Race Face Atlas handlebar and short Beetle stem

THUNDERBIRD FR- GENERAL INFO
FR stands for freeride, and this is what you should do with this bike. A new Thunderbird FR frame sits on 27.5″ wheels, as they are easier to get than 26″ nowadays. Coil or air – it is your choice where you want to play with it. We designed it for bikepark laps with friends that choose double black diamonds for a warm-up run. It is a progressive and stiff as hell platform ready to be wrapped, hucked, and mistreated regularly. Thunderbird FR pedals just right to keep the sweat off during beer runs while its suspension stays responsive enough to prevent cold ones from ruffling. Well, that is what our R&D team says. 180mm of rear and up to 200mm of front travel with geometry allowing to fit a 29-inch front wheel means you can easily match it with a dual crown fork and keep the eyes away from your lovely mullet. With a great price to build ratio, you can easily save on a bike and travel more!
For keeping the frame trouble-free, all pivot points are working on the stiff axles mounted on the sealed Max-type bearings. The progressive suspension design is perfect for both types of shocks: spring shocks and large volume air shocks. The construction reduces also the negative impact of braking on the suspension operation. If you look for some more tech talk – the head tube is ready to take the new generation of 1.8″ tapered forks with 68-69mm crowns and the dropout is compatible with the SRAM Universal Derailleur Hanger (UDH).


With this frame, you can #ShredLikeThunder!

SPECIFICATION
FRAME: matt Black/Grey, AL 6061-T6, travel 180mm
FRAME SIZE: Medium, Large
FORK: Rock Shox Domain RC 27.5″, Boost, travel 180mm, crown 69mm, axle 15mm, tapered
SHOCK: X-Fusion H3C HLR, 225x75mm, coil 400
SHOCK HARDWARE: 22.2x8mm
HEADSETS: Dartmoor Storm OEM
DERAILLEUR: Microshift AdventX RD-M6205GM (with clutch) 1×10
SHIFTER: Microshift AdventX SL-M9605-R, 10-speed
BRAKES: SRAM Guide T, 4-piston brakes, rotors front 203mm/rear 203mm
CRANKSET: FSA Comet Heavy Duty 170mm
CHAINRING: Direct mount 34T
CASSETTE: Microshift CS-H104, 11-48T
CHAIN: KMC X10
PEDALS: Dartmoor Stream OEM
RIMS: Dartmoor Shield 27.5″, 32H, F/V
FRONT HUB: Dartmoor Reel Boost 110x15mm, 32H
REAR HUB: Dartmoor Reel Boost 148x12mm, 32H
TIRES: Vee Tire Flow Snap 27.5×2.6, Wire, MPC
HANDLEBAR: Race Face Atlas 785mm, Ø31.8mm, rise 1.5″
STEM: Dartmoor Beetle, Ø31.8mm
GRIPS: OEM 135mm, diamond pattern, with lock ring
SADDLE: Dartmoor Trail v.2
SEATPOST: alu 6061, 30.9x350mm
WEIGHT: 17,20kg (w/o pedals)
COLOR: matt Black/Grey

Geometry
Reach: 445 (M) 470 (L)
Stack: 619 (M) 619 (L)
ST: 430 (M) 450 (L)
eTT: 540 (M) 565 (L)
CS: 430 (M) 430 (L)
HT: 110 (M) 110 (L)
HT angle: 65 (M) 65 (L)
eST angle: 81 (M) 81 (L)
BB drop: 12 (M) 12 (L)
WB: 1206 (M) 1231 (L)
wheel size: 27.5 (M) 27.5 (L)
hub size: 148×12 (M) 148×12 (L)
headset type: IS42/IS60 (M) IS42/IS60 (L)
BB type: BSA/Euro73 (M) BSA/Euro73 (L)
post diam.: 30.9 (M) 30.9 (L)
clamp diam.: 34.9 (M) 34.9 (L)
brake mount: PM 180 mm (M) PM 180 mm (L)
max rotor size: 203 (M) 203 (L)

* Spezifikation kann in Ausnahmefällen, herstellerbedingt, in Details abweichen.
